Storage

The cluster has a storage system which is persistent across all nodes: this means that the files you edit on frontend will be the same across all nodes.

Transfer files from/to the cluster

There are plenty of methods to transfer files to the cluster. We will analyze two methods.

rsync methodFileZilla method

rsync is a command-line utility that efficiently synchronizes files and directories between two locations by transferring only the differences between the source and destination files, making it ideal for large data transfers and backups.

While rsync offers many advantages, including security, flexibility, and scriptability, it also has a steep learning curve and limited file browsing capabilities due to its command-line interface, which can be a drawback for some users.

Transferring files and folders recursively is as simple as executing this command from your local terminal:

rsync -vr <src_path> <dst_path>

As an example:

rsync -vr local_file.txt <user>@151.100.174.45:~ # (1)
rsync -vr <user>@151.100.174.45:~/remote_file.txt . # (2)

1. Transfer a local file local_file.txt to the home directory of your user on the cluster /home/<user>
2. Transfer a file remote_file.txt from the home directory of your user on the cluster /home/<user> to the current folder of the local terminal

FileZilla is an open-source FTP (File Transfer Protocol) client software that allows users to transfer files between their local computer and a remote server, providing a graphical user interface that simplifies file management tasks.

It might be preferred over rsync for users who are not comfortable with command-line interfaces or need to perform more complex file management tasks, such as browsing and editing files on the remote server, as it offers a more intuitive and user-friendly experience.

In order to connect to the cluster, you have to create a site on the FileZilla's Site Manager:

1. Click on File Site Manager My Sites New site

2. Change the following fields:

   Field	Value
   Name of the site on FileZilla's Site Manager	whatever name you prefer, frontend for example
   Protocol	SFTP - SSH File Transfer Protocol
   Host	151.100.174.45
   Logon type	Normal
   User	your username on the cluster
   Password	your password on the cluster

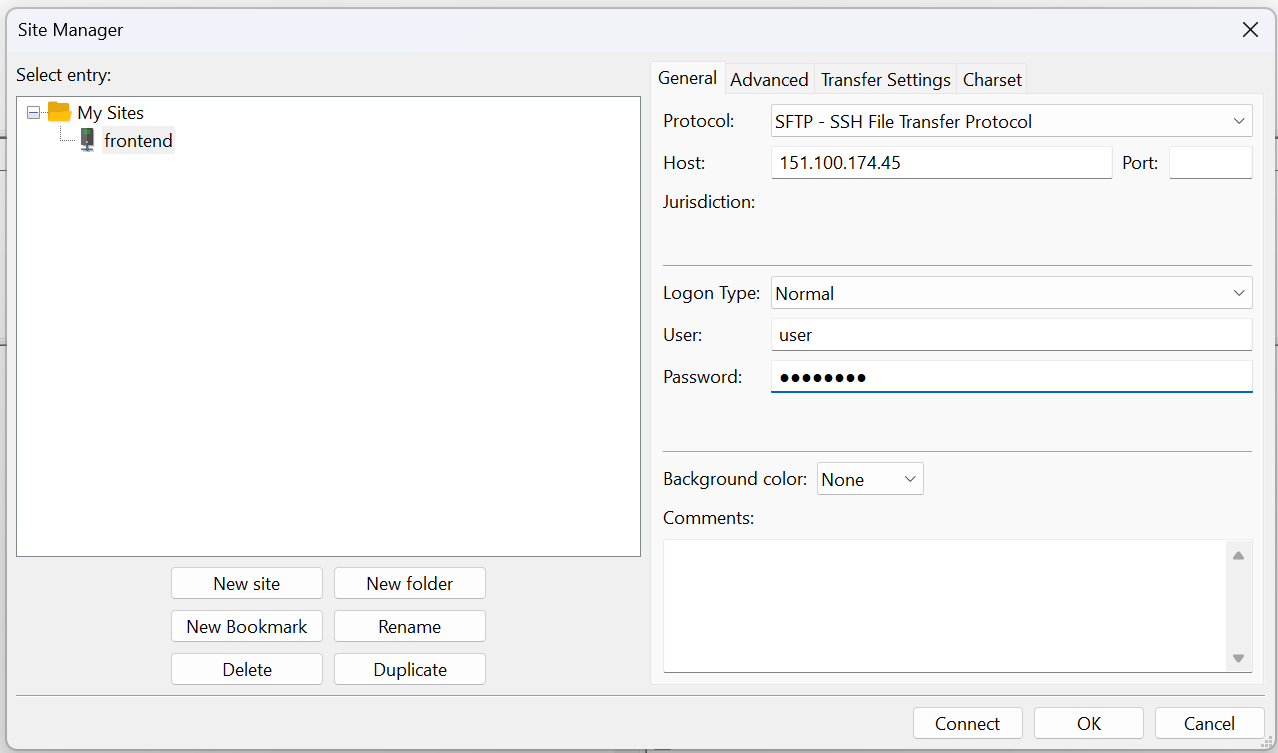

   After this procedure, your Site Manager should look like this:



Now that the site has been created, you can connect to it by clicking, on the Site Manager, on the name of the new created site and then to Connect. Now that you've opened a connection to the site, you can use FileZilla to transfer files.

Limits

Each user has up to 3TB available.
